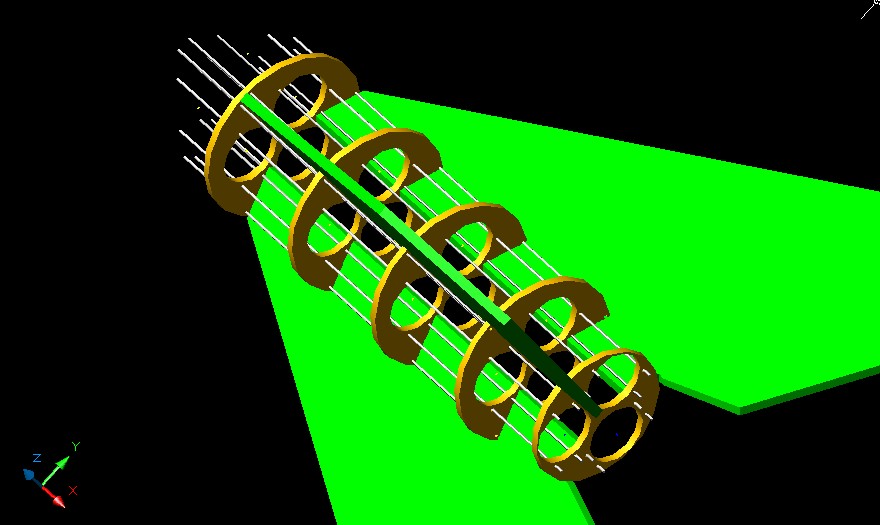

Side view of the overall fin can. 3/4" Birch plywood will be used for the centering rings,. 5/16" all thread will run the length of the fin can.

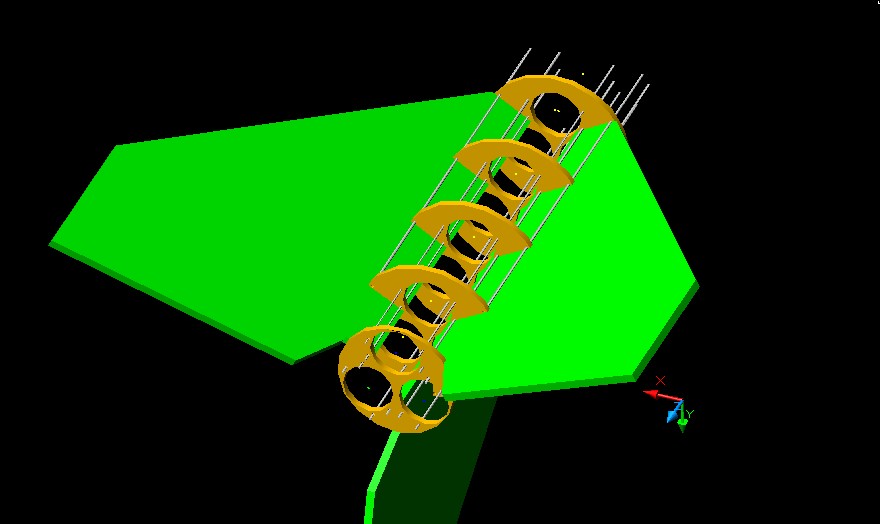

This detail shows how four pieces of all-thread (two per side) will anchor the fin tab to the rest of the assembly.

Just another view of the fin can.

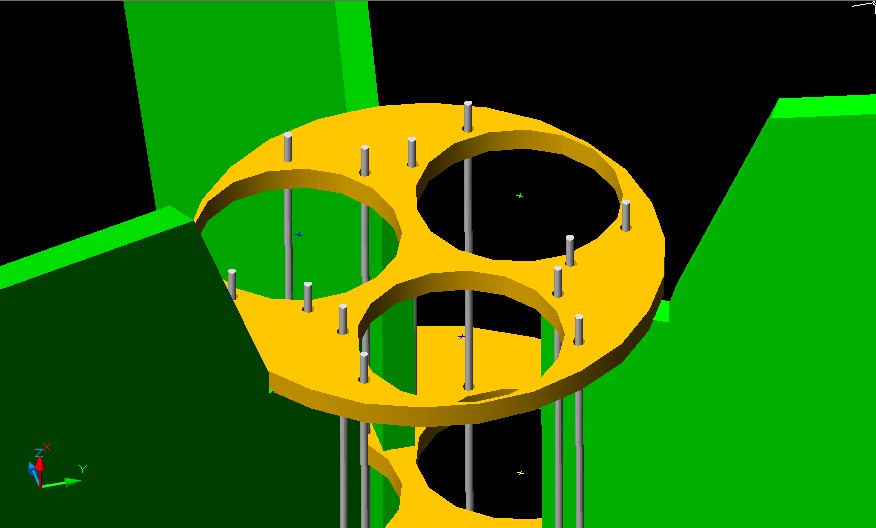

Close-up drawing of the aft end of the fin can. The protruding bolts will be used for motor retention. Four 5/16" all-thread pieces for each motor will serve retention.

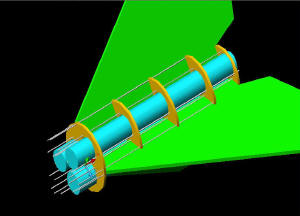

Here's a shot of the fin can with the Loki Research motor cases installed.
